DIY Lifepo4 Battery Kit 16pcs 200Ah 280Ah 48V With Released Standing Case

Place of Origin Guangdong, China
Brand Name Cylaid
Model Number 48V
Price $780.00/pieces 1-49 pieces
Packaging Details Batteries will be packed in professional carton.
Supply Ability 5000 Piece/Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Battery Type LiFePO4, LiFePO4, Lithium Iron Phosphate Battery Pack Output Power Range 10~20 KWh
System Type Wall-mounted, Stackable, Rack-mounted Type All-in-one
Communication Port CAN, RS485 Grid Connection Off Grid
Product Name Energy Storage Battery, Lfp Battery, 48v Lifepo4 Battery Power Source 5kwh 10kwh 15kwh Solar Battery
Application Home Power Storag System, Solar Energy Storage Battery Energy Nominal Capacity 100Ah/ 200ah/ 300ah
Nominal Voltage 48v/ 51.2v Service Life >6000 15 Years @ 25 ℃
Cycle Life 6000 Times Stardand Charging/Discharging Current 50A
Max Charging/Discharging Current 100A Port Shenzhen Or Guangzhou
High Light

DIY Lifepo4 Battery Kit 16pcs

,

DIY Lifepo4 Battery Kit 280Ah

Leave a Message
Product Description

DIY Lifepo4 Battery Kit 16pcs 200Ah 280Ah 48V Empty Case 48V with Released Standing Case

Products Description

DIY Lifepo4 Battery Kit 16pcs 200Ah 280Ah 48V With Released Standing Case 0



Solar Wall-mounted LifePO4 Energy Storage Battery

√--48V /51.2V ----100Ah/200Ah/300Ah---5KWH/10KWH/15KWH--√

SOPPORTING OEM/ODM
1. Under normal conditions, using lithium iron phosphate battery technology, with excellent safety, thousands of cycles, 100% DOD.
2. Built-in automatic protection function to prevent overcharging, overdischarging, overcurrent and overheating.
3. Maintenance free.
4. Internal battery balance.
5. Light weight: about 40%~50% of the weight of lead-acid batteries.
6. Can be charged using most standard lead acid charge (set).
7. Wide temperature range: -20 ° C ~ 60 ° C.
8. Support for series application extensions(up to 51.2V) and two parallels.
Item
48V 100Ah
51.2V 100Ah
51.2V 200Ah
Rated Voltage
48V
51.2V
51.2V
Capacity
100Ah
100Ah
200Ah

4.8KWh
5.12KWh
10.24KWh
Stardand Charging/Discharging Current
50A@25±2℃
50A@25±2℃
50A@25±2℃
Max Charging/Discharging Current
100A@25±2℃
100A@25±2℃
100A@25±2℃
Working Ambient Temperature
0~40℃(Charge)
0~40℃(Charge)
0~40℃(Charge)

-20~40℃(Discharge)
-20~40℃(Discharge)
-20~40℃(Discharge)
Commumication Mode
CAN or RS485
CAN or RS485
CAN or RS485
IP Rate
IP 66
IP 66
IP30
Charging cycle
6000 cycles @25℃
50A Charging/discharging current 80% DOD
6000 cycles @25℃
50A Charging/discharging current 80% DOD
6000 cycles @25℃
50A Charging/discharging current 80% DOD
Storage Temperature/Huminity
-10℃~35℃ (Within 1 month storage)
25±2℃(Within 3 months storage)
65%±20%RH
-10℃~35℃ (Within 1 month storage)
25±2℃(Within 3 months storage)
65%±20%RH
-10℃~35℃ (Within 1 month storage)
25±2℃(Within 3 months storage)
65%±20%RH
Size
(627)×(463.5)×(204.5)mm
(627)×(463.5)×(204.5)mm
790*478*140mm
Weight
62Kg±3kg
65Kg±3kg
78+3kgs
Latitude Altitude
0-3000m
0-3000m
0-3000m
Huminity Range
5~80%
5~80%
5~80%
DIY Lifepo4 Battery Kit 16pcs 200Ah 280Ah 48V With Released Standing Case 1
Details Images
DIY Lifepo4 Battery Kit 16pcs 200Ah 280Ah 48V With Released Standing Case 2
DIY Lifepo4 Battery Kit 16pcs 200Ah 280Ah 48V With Released Standing Case 3

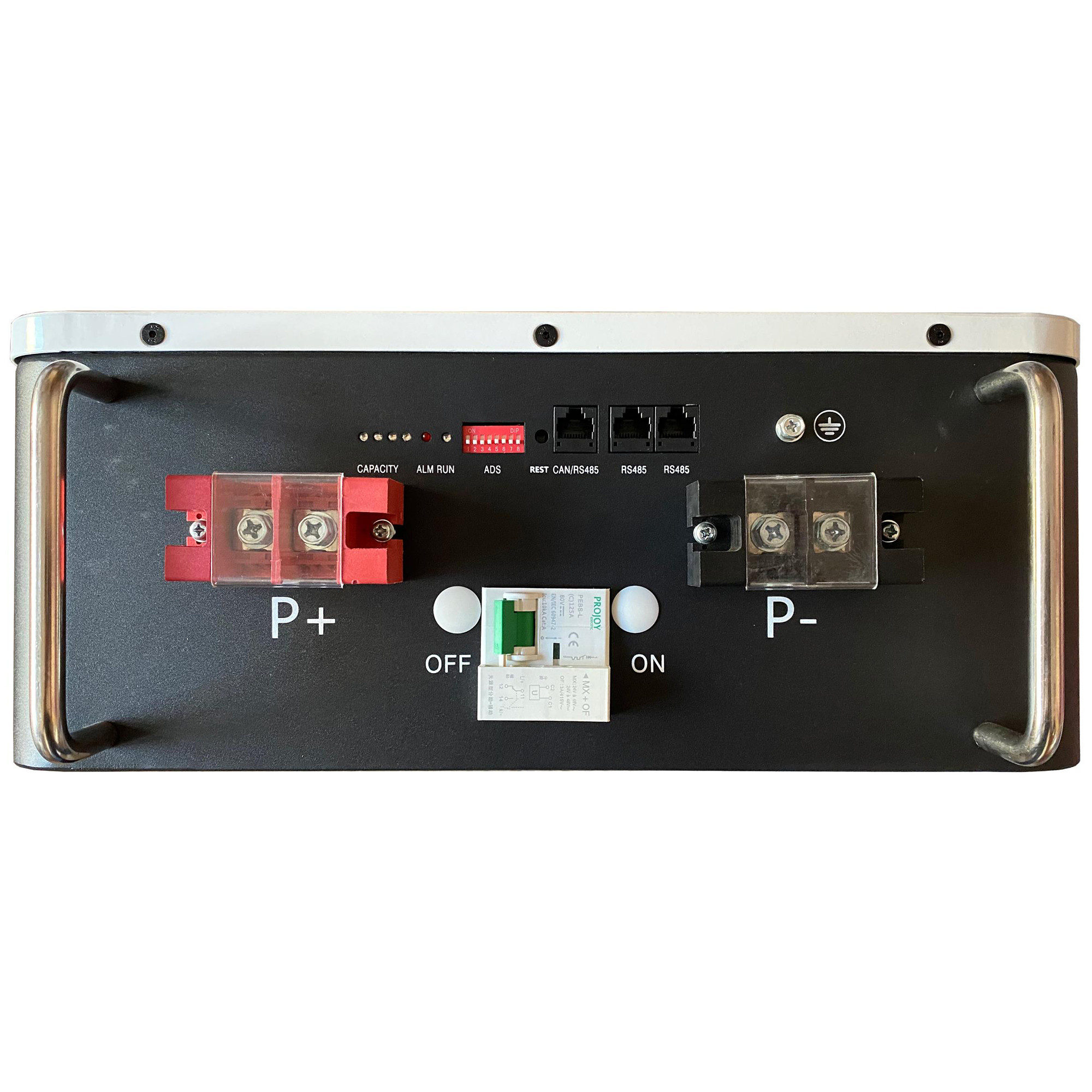

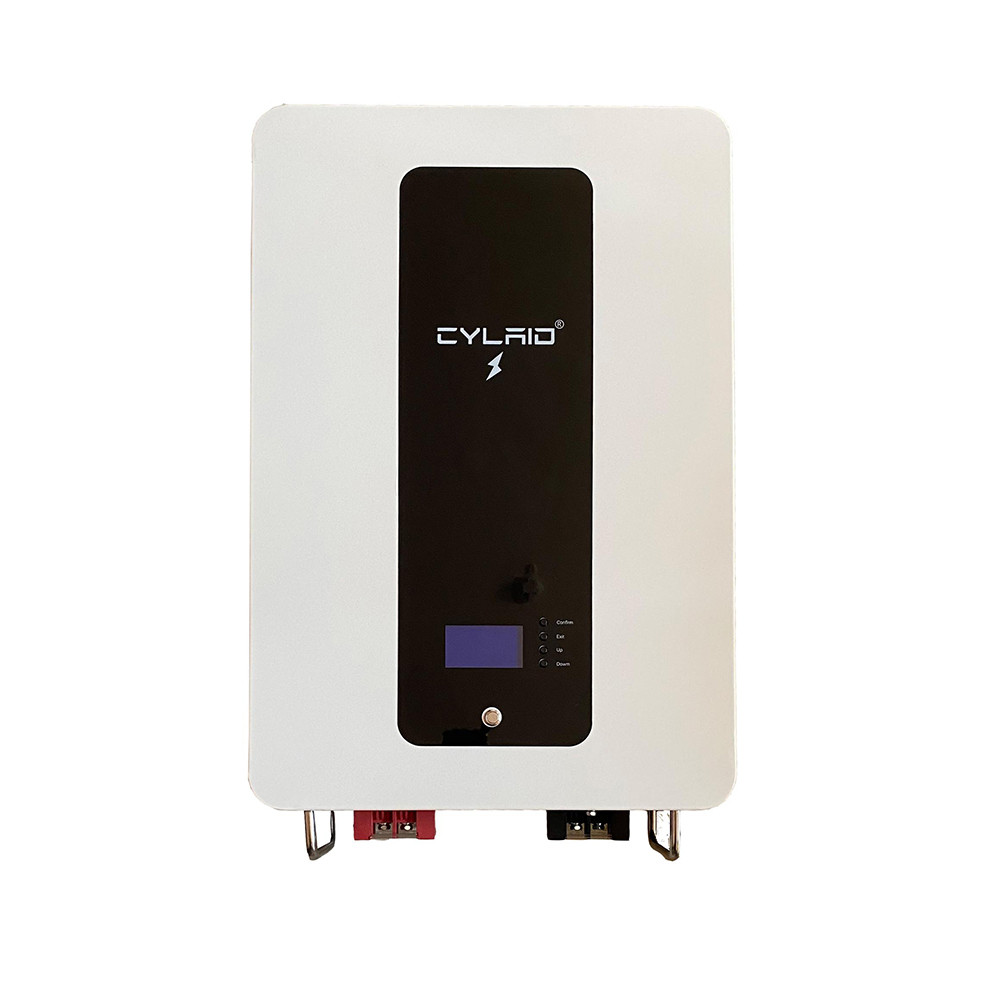

Front
DIY Lifepo4 Battery Kit 16pcs 200Ah 280Ah 48V With Released Standing Case 4

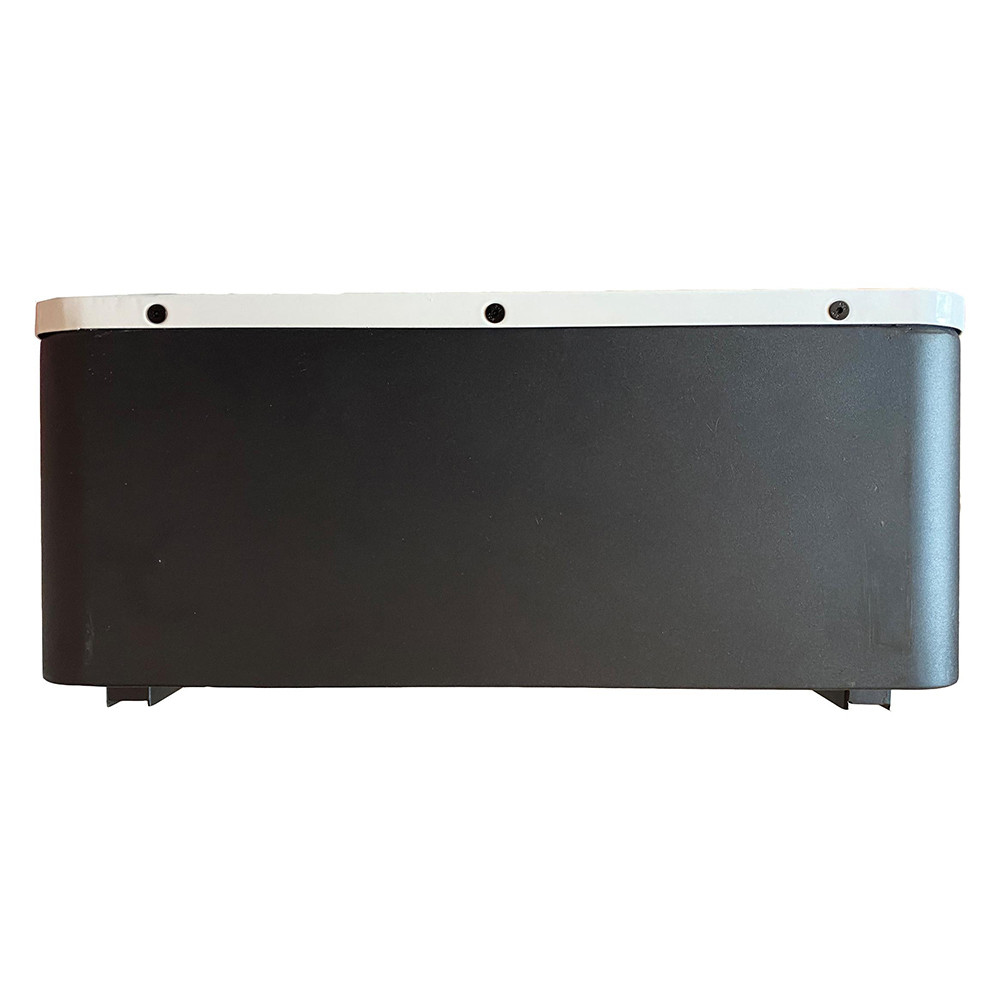

Behind
DIY Lifepo4 Battery Kit 16pcs 200Ah 280Ah 48V With Released Standing Case 5

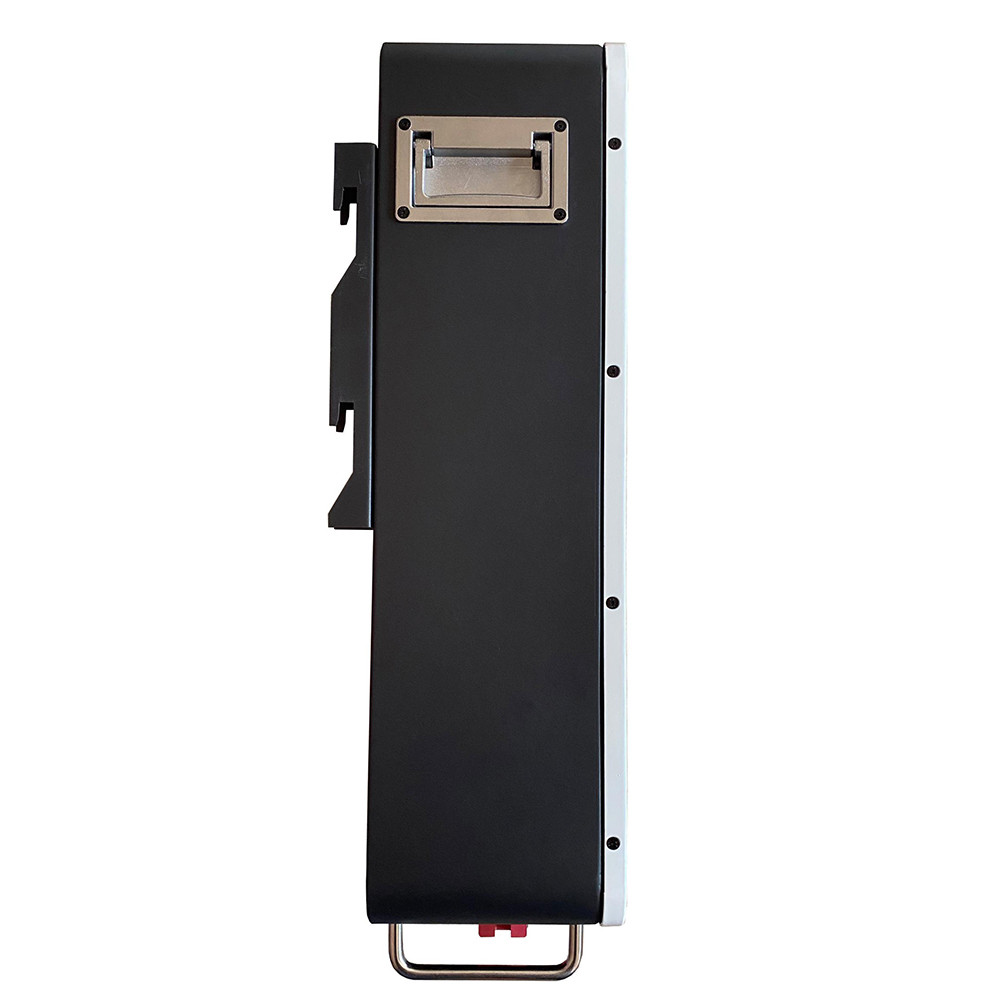

Left
DIY Lifepo4 Battery Kit 16pcs 200Ah 280Ah 48V With Released Standing Case 6
Right
DIY Lifepo4 Battery Kit 16pcs 200Ah 280Ah 48V With Released Standing Case 7
Below
DIY Lifepo4 Battery Kit 16pcs 200Ah 280Ah 48V With Released Standing Case 8
Top
DIY Lifepo4 Battery Kit 16pcs 200Ah 280Ah 48V With Released Standing Case 9
DIY Lifepo4 Battery Kit 16pcs 200Ah 280Ah 48V With Released Standing Case 10
DIY Lifepo4 Battery Kit 16pcs 200Ah 280Ah 48V With Released Standing Case 11
DIY Lifepo4 Battery Kit 16pcs 200Ah 280Ah 48V With Released Standing Case 12
Product Description
DIY Lifepo4 Battery Kit 16pcs 200Ah 280Ah 48V With Released Standing Case 13
DIY Lifepo4 Battery Kit 16pcs 200Ah 280Ah 48V With Released Standing Case 14
DIY Lifepo4 Battery Kit 16pcs 200Ah 280Ah 48V With Released Standing Case 15
DIY Lifepo4 Battery Kit 16pcs 200Ah 280Ah 48V With Released Standing Case 16
Manufacturing Technique
DIY Lifepo4 Battery Kit 16pcs 200Ah 280Ah 48V With Released Standing Case 17
DIY Lifepo4 Battery Kit 16pcs 200Ah 280Ah 48V With Released Standing Case 18
DIY Lifepo4 Battery Kit 16pcs 200Ah 280Ah 48V With Released Standing Case 19
DIY Lifepo4 Battery Kit 16pcs 200Ah 280Ah 48V With Released Standing Case 20
Company Profile
DIY Lifepo4 Battery Kit 16pcs 200Ah 280Ah 48V With Released Standing Case 21
DIY Lifepo4 Battery Kit 16pcs 200Ah 280Ah 48V With Released Standing Case 22
DIY Lifepo4 Battery Kit 16pcs 200Ah 280Ah 48V With Released Standing Case 23
FAQ
1) Is the product original? A: Yes,it is indeed 100% original and authentic, we never sell fake battery, honest is the best policy. 2) Can I have a sample order? A: Yes, sample order is available for all of our products. 3) What's your MOQ(minimum order quantity)? A: No limited. Sample order and trail order are accepted. 4) What's your delivery time? A: The cargo will be shipped out within 2-3 working days and 7-15 days to arrive to your hand. 5) How can I place order? A: You can place order on Alibaba directly or contact us by email about your order details. 6) How do you ship the goods? A: Usually by UPS,TNT,DHL,Fedex...(We will choose the best available shipping methods for you always) 7) How can i pay you? A: We accept T/T and Paypal, Western Union. 8) How do I take care when your client received defective products? A: replacement. If there are some defective items,we usually credit to our customers or replace in next shipment.
