Long Cycle Life 3.2V 184Ah LPF Blade Battery For Energy Storage System
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Features | Long Cycle Life | Anode Material | LFP |
---|---|---|---|
Application | Toys, Power Tools, Home Appliances, Consumer Electronics, BOATS, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, Electric Vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies, Electric For | Type | Li-Ion/lithium/lifepo4 |
Battery Type | Lifepo4/lithium Battery | Nominal Voltage | 3.2Volt |
Material | Li-FePO4 | Size | 21.5*118*574 |
Keywords | Battery Lithium Lifepo4 | Usage | Energy Storage System |
Product Name | Honeycomb Iron Lithium Battery | Warranty | 5years |
High Light | 184Ah LPF blade battery,Energy Storage LPF blade battery,Long Cycle Life blade cell battery |
Product Description

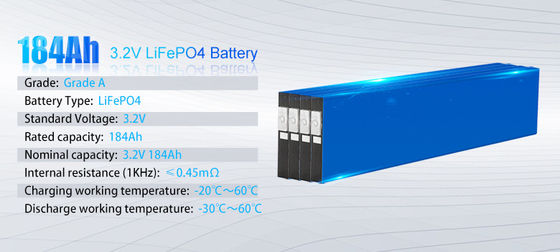

Long Cycle Life 3.2V 184Ah LPF LiFePo4 Lithium Ion Battery for Energy Storage System
Product Description
Item
|
|
Parameter
|
Remark
|
|
Nominal Capacity
|
|
184.0Ah
|
(25+2) ℃, Standard charge and discharge
|
|
Typical Voltage
|
|
3.2V
|
|
|
AC Impedance Resistance(1KHz)
|
|
≤0.25mQ
|
|
|
Standard chargeand discharge
|
Charge/discharge current
|
0.5C/0.5C
|
|
|
|
Cutoff voltage of charge/discharge
|
3.65V/2.5V
|
|
|
Maximum charge/discharge current
|
Continuous charge/discharge
|
1C/1C
|
According to continuous/pulse charge and dischargeammeters
|
|
|
Pulse charge/discharge(30s)
|
2C/2C
|
|
|
Recommended scope of SOC
|
|
10%~90%
|
N.A.
|
|
Charging Temperature
|
|
0℃~55℃
|
According to continuous/pulse charge and dischargeammeters
|
|
Discharging Temperature
|
|
-20℃~55℃
|
|
|
Storage Temperature
|
Short term ( within 1 month )
|
-20℃~45℃
|
N.A.
|
|
|
Long term ( within 1 year )
|
0℃~35℃
|
|
|
Storage humidity range
|
|
< 90%
|
|
|
Self-discharge rate per month
|
|
≤3%/month
|
Temperature: (25±2)℃
Storage scope of SOC:
30%-50%SOC
|
|

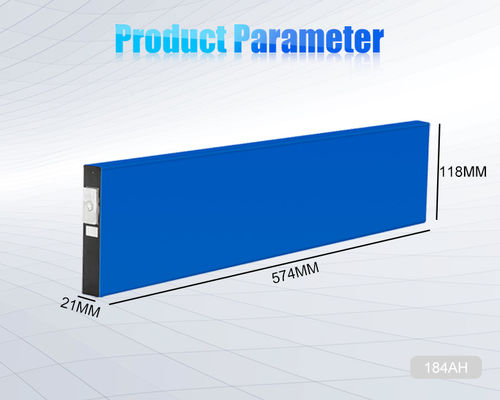

Dimesion
|
Width
|
173.7±0.5mm
|
Refer to Appendix I
|
|
|
Thickness(under 300+20 kgf 30%-40%SOC
|
72,0±1,0mm
|
|
|
|
Average thickness(200 pcs, under 300士20kgf,30%~40%SOC
|
72.0±0.5mm
|
|
|
|
High (total)
|
207.5±0.5mm
|
|
|
|
High(subiect)
|
204.6土0.5mm
|
|
|
|
Tabs Distance
|
123.0+0.3mm
|
|
|
Battery weight
|
Batterv weight
|
5.42±0.3kg
|
|

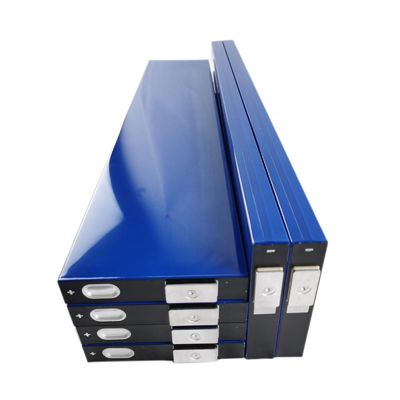

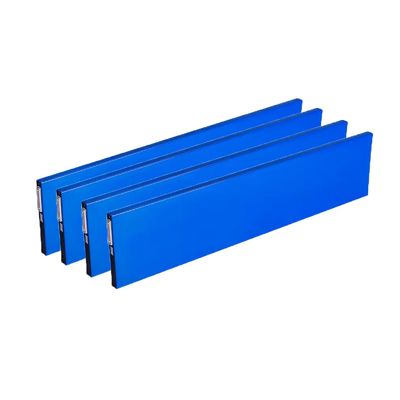

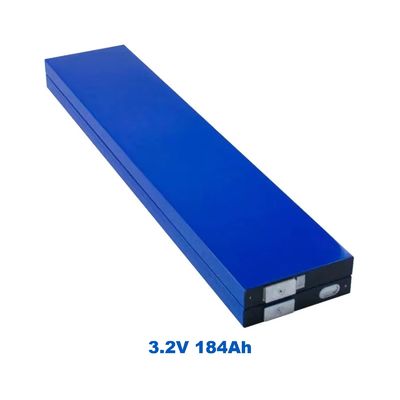

Details Images
Applications
Manufacturing Technique
Company Profile
Shenzhen Cylaid Technology Co., Ltd, founded in Shenzhen in 2015, is a high technology enterprise building a reputation for both qualities of products and service rechargeable lithium batteries, battery packs, and chargers in full ranges in China.
Cylaid specialize in this field for many years with advanced equipment, scientific management techniques, and excellent quality control which earn us customers all over the world. We offer specialized in the research, production, marketing, and technical service for our customers with a one-stop solution. Our main products include the 18650 rechargeable lithium-ion battery, lithium iron phosphate battery, customized battery packs, new energy vehicle fields such as electric bicycles and electric vehicles, and related battery chargers which contain the standard charger, fast charger, and intelligent charger.
We can also offer the completed series of products from battery cells to finished batteries, in order to meet the customers' requirements maximally. We attend three foreign exhibitions each year to promote the brand and release new products and visit customers to maintain close cooperation.
Now we have long-term cooperation distributors with battery wholesalers in the United States, UK, Germany, Japan,Philippines, Indonesia, and many countries all over the world. We have our own production base which covers more than 5,000 square meters. Meantime our company has established a strict quality guarantee system, both manufacturing, and raw material are subjected to strict inspections.
China Safe Svolt Cells 3.2V 184Ah LPF LiFePo4 Lithium Ion Energy Storage Battery Solar Scooter Blade e Bicycle Batteries
Certifications

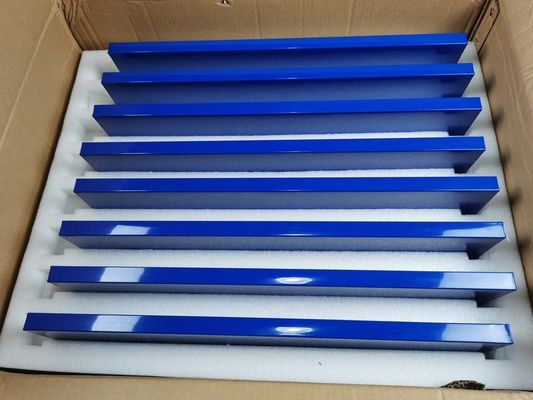

Packing&Shipping
FAQ
1) Is the product original? A: Yes,it is indeed 100% original and authentic, we never sell fake battery, honest is the best policy. 2) Can I have a sample order? A: Yes, sample order is available for all of our products. 3) What's your MOQ(minimum order quantity)? A: No limited. Sample order and trail order are accepted. 4) What's your delivery time? A: The cargo will be shipped out within 2-3 working days and 7-15 days to arrive to your hand. 5) How can I place order? A: You can place order on Alibaba directly or contact us by email about your order details. 6) How do you ship the goods? A: Usually by UPS,TNT,DHL,Fedex...(We will choose the best available shipping methods for you always) 7) How can i pay you? A: We accept T/T and Paypal, Western Union. 8) How do I take care when your client received defective products? A: replacement. If there are some defective items,we usually credit to our customers or replace in next shipment.
