LiFePO4 Seplos Battery Box For Home Energy Storage System 48V 16S1P 280 302 304Ah DIY Kit
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Weight | 29kg, 28KG | The Charging Ratio | 1C |
|---|---|---|---|
| The Discharge Rate | 1C | Anode Material | Other, NCM |
| Application | Power Tools, Home Appliances, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies, Toys, Power Tools, Home Appliances, Consumer Electroic | Battery Size | 440*750*270mm |
| Model | 48V 280Ah 302AH 304AH 15KW Empty Metal Box | Warranty | 5 Years, 5years |
| Communication | CANBUS | BMS | 48V 16S 200A BMS |
| For Model | 48V 280Ah 302AH 304AH | Battery Type | LiFePO4 |
| High Light | LiFePO4 Seplos Battery Box,Seplos Battery Box 16S1P,seplos battery case 16S1P |
||
Product Description
LiFePO4 Battery Box for Home Energy Storage System 48V 16S1P 280 302 304Ah DIY Kit
Products Description
|
Nominal Voltage (V)
|
51.2V
|
|
Nominal Capacity (Ah)
|
280Ah @0.5C discharge current 25±2℃
|
|
Nominal Power (Wh)
|
14.3KWh
|
|
Dimension (mm)
|
750*440*251mm
|
|
Weight (Kg)
|
28KG
|
|
Discharge Cut-off Voltage (V)
|
41.6V
|
|
Charge Voltage (V)
|
57.6V
|
|
Continuously Charge/Discharge Current (A)
|
140A @25±2℃ (Recommended)
|
|
Max Standard charge/discharge Current (A)
|
200A @25±2℃
|
|
Standard charge/discharge Current (A)
|
140A @25±2℃ (Recommended)
|
|
Max Standard charge/discharge Current (A)
|
200A @25±2℃
|
|
Working Temperature
|
0～50℃(Charge)
|
|
|
-10～50℃(Discharge)
|
|
|
-20～55℃(Storage)
|
|
SOC Range
|
5%-100%
|
|
Recommended SOC Range
|
15-95%
|
|
Communication Interface
|
CAN (Default)or RS485
|
|
Humidity
|
10% - 85%
|
|
IP level
|
IP 20
|

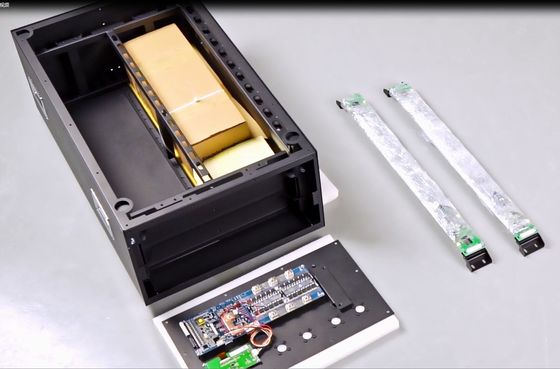

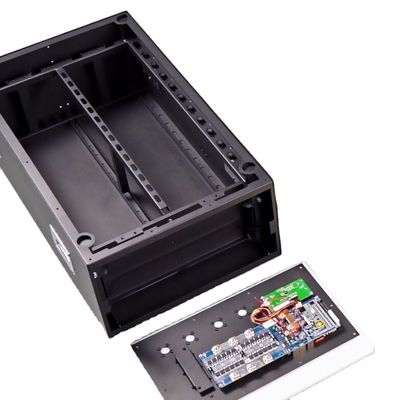

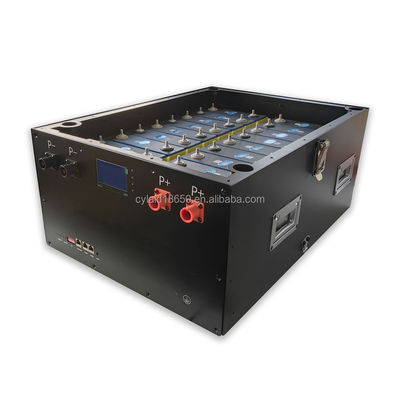

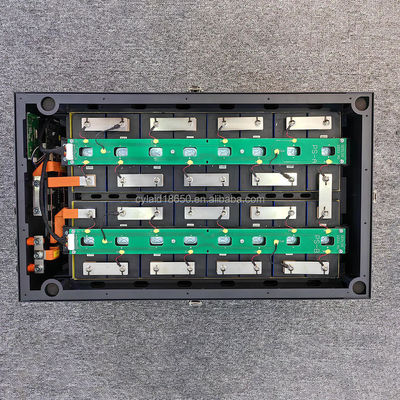

Details Images
Applications
Manufacturing Technique
Company Profile
Shenzhen Cylaid Technology Co., Ltd, founded in Shenzhen in 2015, is a high technology enterprise building a reputation for both qualities of products and service rechargeable lithium batteries, battery packs, and chargers in full ranges in China.
Cylaid specialize in this field for many years with advanced equipment, scientific management techniques, and excellent quality control which earn us customers all over the world. We offer specialized in the research, production, marketing, and technical service for our customers with a one-stop solution. Our main products include the 18650 rechargeable lithium-ion battery, lithium iron phosphate battery, customized battery packs, new energy vehicle fields such as electric bicycles and electric vehicles, and related battery chargers which contain the standard charger, fast charger, and intelligent charger.
We can also offer the completed series of products from battery cells to finished batteries, in order to meet the customers' requirements maximally. We attend three foreign exhibitions each year to promote the brand and release new products and visit customers to maintain close cooperation.
Now we have long-term cooperation distributors with battery wholesalers in the United States, UK, Germany, Japan,Philippines, Indonesia, and many countries all over the world. We have our own production base which covers more than 5,000 square meters. Meantime our company has established a strict quality guarantee system, both manufacturing, and raw material are subjected to strict inspections.
Certifications
Packing&Shipping
FAQ
1) Is the product original? A: Yes,it is indeed 100% original and authentic, we never sell fake battery, honest is the best policy. 2) Can I have a sample order? A: Yes, sample order is available for all of our products. 3) What's your MOQ(minimum order quantity)? A: No limited. Sample order and trail order are accepted. 4) What's your delivery time? A: The cargo will be shipped out within 2-3 working days and 7-15 days to arrive to your hand. 5) How can I place order? A: You can place order on Alibaba directly or contact us by email about your order details. 6) How do you ship the goods? A: Usually by UPS,TNT,DHL,Fedex...(We will choose the best available shipping methods for you always) 7) How can i pay you? A: We accept T/T and Paypal, Western Union. 8) How do I take care when your client received defective products? A: replacement. If there are some defective items,we usually credit to our customers or replace in next shipment.
