IP65 Customized Lithium Iron Phosphate Home Battery For On Board Energy Storage
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Battery Type | Lithium Ion, LiFePO4, Lithium Iron Phosphate Battery Pack | Output Power Range | 10~20 KWh |
|---|---|---|---|
| System Type | Wall-mounted | Communication Port | CAN, RS485 |
| Protection Class | IP65 | Grid Connection | Off Grid, Hybrid Grid |
| Product Name | Energy Storage Battery, Lfp Battery, 48v Lifepo4 Battery | Power Source | 5kwh 10kwh 15kwh Solar Battery |
| Application | Home Power Storag System, Solar Energy Storage Battery Energy | Nominal Capacity | 100Ah/ 200ah/ 300ah |
| Nominal Voltage | 48v/ 51.2v | Service Life | > 15 Years @ 25 ℃ |
| Cycle Life | 6000 Times | Stardand Charging/Discharging Current | 50A |
| Max Charging/Discharging Current | 100A | Port | Shenzhen Or Guangzhou |
| High Light | IP65 Lithium Iron Phosphate Home Battery,Customized Lithium Iron Phosphate Home Battery,Customized lfp home battery |
||
Product Description
Customized Lithium Iron Phosphate Baterii Lifepo4 Battery for On-Board Energy Storage
Products Description

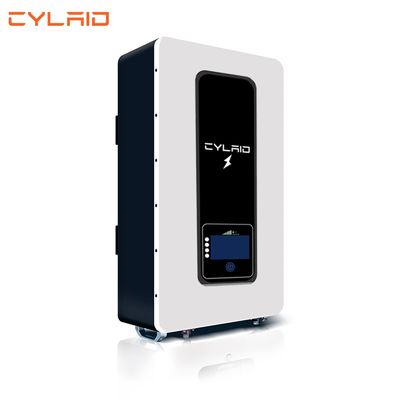

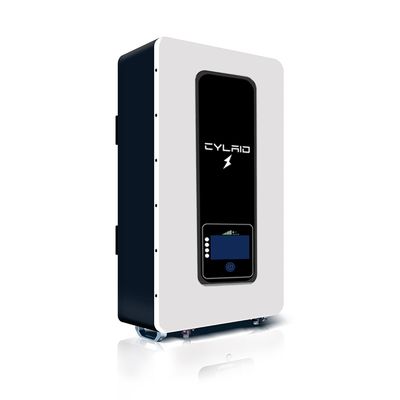

Solar Wall-mounted LifePO4 Energy Storage Battery
√--48V /51.2V ----100Ah/200Ah/300Ah---5KWH/10KWH/15KWH--√
SOPPORTING OEM/ODM
1. Under normal conditions, using lithium iron phosphate battery technology, with excellent safety, thousands of cycles, 100% DOD.
2. Built-in automatic protection function to prevent overcharging, overdischarging, overcurrent and overheating.
2. Built-in automatic protection function to prevent overcharging, overdischarging, overcurrent and overheating.
3. Maintenance free.
4. Internal battery balance.
5. Light weight: about 40%~50% of the weight of lead-acid batteries.
6. Can be charged using most standard lead acid charge (set).
7. Wide temperature range: -20 ° C ~ 60 ° C.
8. Support for series application extensions(up to 51.2V) and two parallels.
|
Item
|
48V 100Ah
|
51.2V 100Ah
|
51.2V 200Ah
|
|
Rated Voltage
|
48V
|
51.2V
|
51.2V
|
|
Capacity
|
100Ah
|
100Ah
|
200Ah
|
|
|
4.8KWh
|
5.12KWh
|
10.24KWh
|
|
Stardand Charging/Discharging Current
|
50A@25±2℃
|
50A@25±2℃
|
50A@25±2℃
|
|
Max Charging/Discharging Current
|
100A@25±2℃
|
100A@25±2℃
|
100A@25±2℃
|
|
Working Ambient Temperature
|
0～40℃(Charge)
|
0～40℃(Charge)
|
0～40℃(Charge)
|
|
|
-20～40℃(Discharge)
|
-20～40℃(Discharge)
|
-20～40℃(Discharge)
|
|
Commumication Mode
|
CAN or RS485
|
CAN or RS485
|
CAN or RS485
|
|
IP Rate
|
IP 66
|
IP 66
|
IP30
|
|
Charging cycle
|
6000 cycles @25℃
50A Charging/discharging current 80% DOD |
6000 cycles @25℃
50A Charging/discharging current 80% DOD |
6000 cycles @25℃
50A Charging/discharging current 80% DOD |
|
Storage Temperature/Huminity
|
-10℃~35℃ (Within 1 month storage)
25±2℃(Within 3 months storage) 65%±20%RH |
-10℃~35℃ (Within 1 month storage)
25±2℃(Within 3 months storage) 65%±20%RH |
-10℃~35℃ (Within 1 month storage)
25±2℃(Within 3 months storage) 65%±20%RH |
|

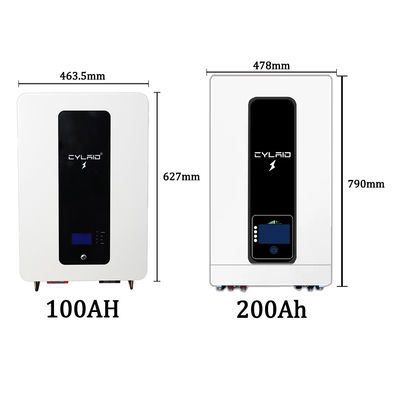

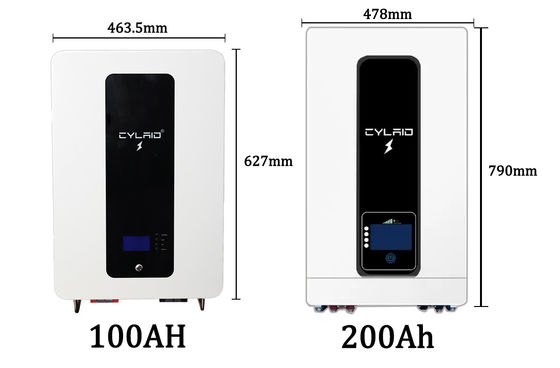

Size
|
(627)×(463.5)×(204.5)mm
|
(627)×(463.5)×(204.5)mm
|
790*478*140mm
|
|
Weight
|
62Kg±3kg
|
65Kg±3kg
|
78+3kgs
|
|
Latitude Altitude
|
0-3000m
|
0-3000m
|
0-3000m
|
|
Huminity Range
|
5~80%
|
5~80%
|
5~80%
|
Details Images

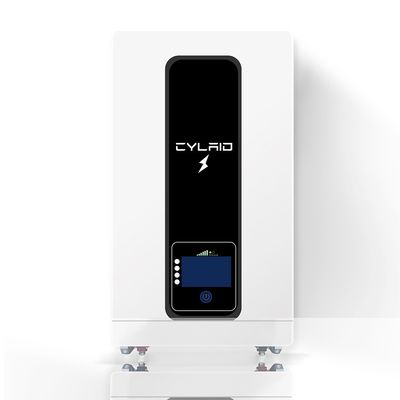

Front
Behind
Left
Right
Below
Top
Product Description
Manufacturing Technique
Company Profile
FAQ
1) Is the product original? A: Yes,it is indeed 100% original and authentic, we never sell fake battery, honest is the best policy. 2) Can I have a sample order? A: Yes, sample order is available for all of our products. 3) What's your MOQ(minimum order quantity)? A: No limited. Sample order and trail order are accepted. 4) What's your delivery time? A: The cargo will be shipped out within 2-3 working days and 7-15 days to arrive to your hand. 5) How can I place order? A: You can place order on Alibaba directly or contact us by email about your order details. 6) How do you ship the goods? A: Usually by UPS,TNT,DHL,Fedex...(We will choose the best available shipping methods for you always) 7) How can i pay you? A: We accept T/T and Paypal, Western Union. 8) How do I take care when your client received defective products? A: replacement. If there are some defective items,we usually credit to our customers or replace in next shipment.
